A load cell is an electronic device classified as a force transducer. It converts an applied force or weight into a measurable electrical signal, typically via bonded strain gauges that change resistance when the cell deforms under load. This precise conversion enables accurate monitoring of tension, compression, or shear forces across a wide range of industrial and laboratory applications.
In practice, a load cell forms the heart of weighing systems—platform scales, hopper and tank weighing, conveyor checkweighers, and material testing rigs. The minute resistance changes from the strain gauges are conditioned by instrumentation amplifiers and output as millivolt signals or standardized formats (e.g., 4–20 mA, 0–10 V, or digital). Proper mounting, temperature compensation, and calibration are essential to maintain accuracy and repeatability.
Choosing the right load cell involves matching capacity, geometry (single-point, shear beam, S-beam, compression, or canister), environmental protection (IP rating), and accuracy class to the application. With the correct selection and signal conditioning, load cells deliver reliable, traceable force and weight measurements that improve process control, quality assurance, and safety.

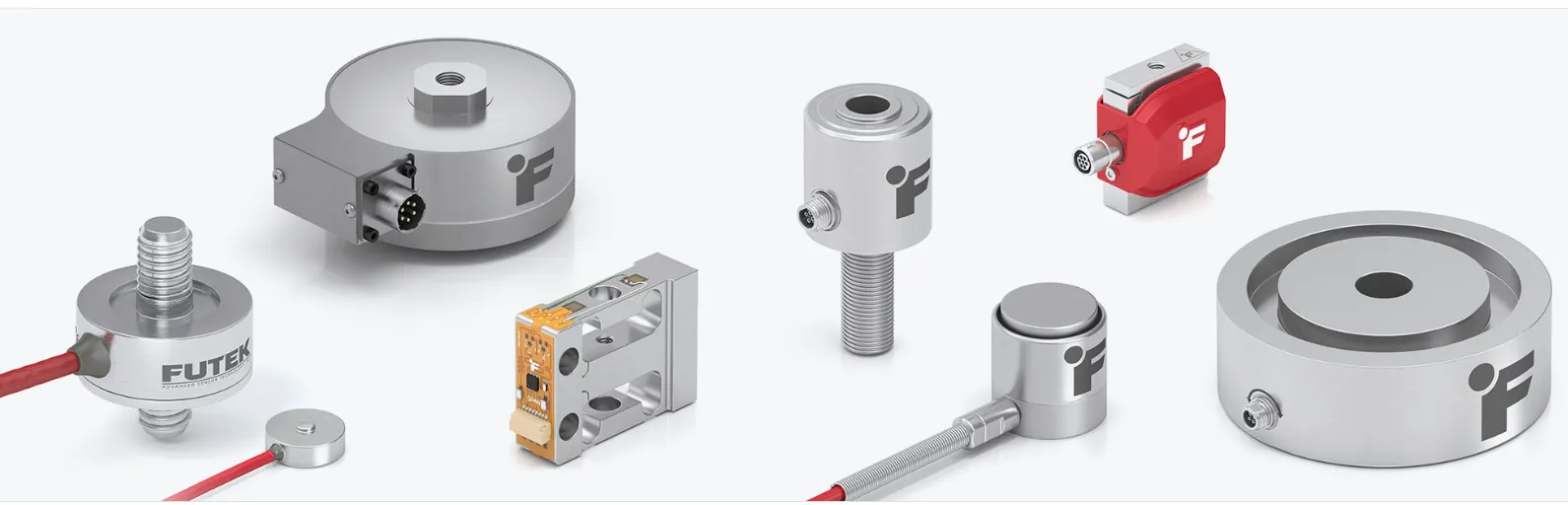

What is Load Cell?
A load cell is an electronic sensor designed to measure force or load by converting it into a proportional electrical signal. It acts as the core element in weighing machines and force measurement systems, ensuring high precision and reliability. By detecting even small changes in mechanical force, load cells provide accurate data for industries such as manufacturing, logistics, healthcare, and research.

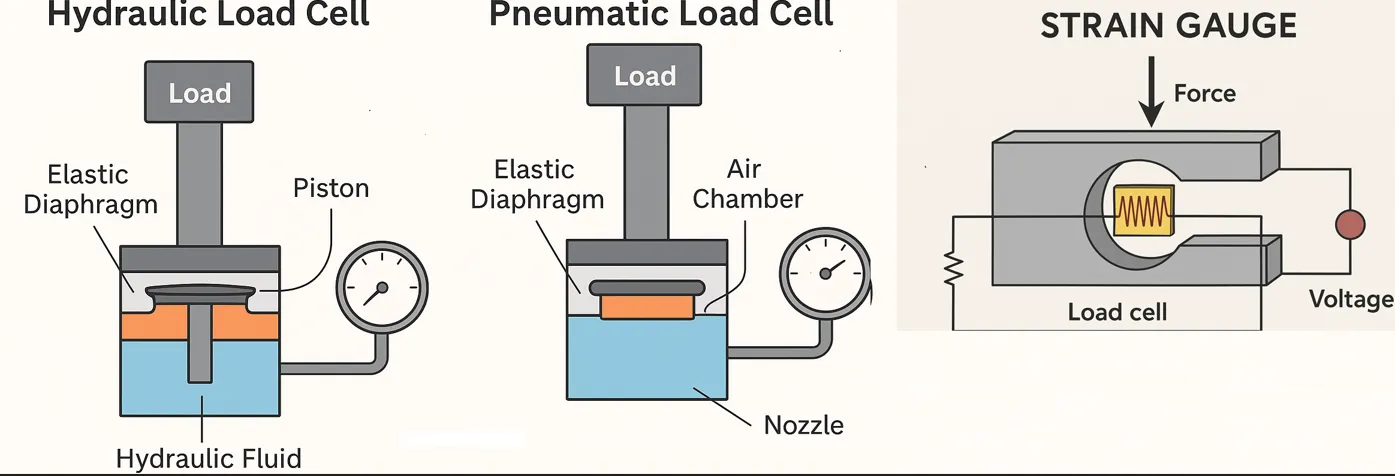

Types of Load Cell
Load cells come in different types based on their design, construction, and application needs. Each type is suited for specific force measurement tasks such as tension, compression, or shear. The most common types of load cells include:
- Strain Gauge Load Cell: The most widely used type, relying on strain gauges to measure deformation and convert it into an electrical signal.
- Hydraulic Load Cell: Uses fluid pressure to measure force, ideal for heavy loads and harsh environments.
- Pneumatic Load Cell: Operates with air pressure, offering safe usage in hazardous or explosive environments.
- Capacitive Load Cell: Detects changes in capacitance to measure load, often used in precision applications.
- Piezoelectric Load Cell: Utilizes piezoelectric materials to generate charge under force, suitable for dynamic and impact measurements.
Strain Gauge Load Cell
Strain gauge load cells are the most widely used type of load cell due to their high accuracy and versatility. Unlike hydraulic and pneumatic designs, which measure force through pressure changes, strain gauge load cells rely on variations in electrical resistance. When force is applied, the strain gauges mounted on the load cell deform, causing a measurable change in resistance.
Working Principle of Strain Gauge Load Cell
The basic working principle is that mechanical deformation changes the resistance of the strain gauge. Under compression, the strain gauge wires become shorter and thicker, reducing resistance. Under tension, they become longer and thinner, increasing resistance. These resistance changes are very small and are typically measured using a Wheatstone bridge circuit. The bridge converts the resistance change into a voltage output directly proportional to the applied load. Since the output is usually in millivolts, it requires amplification for practical use.

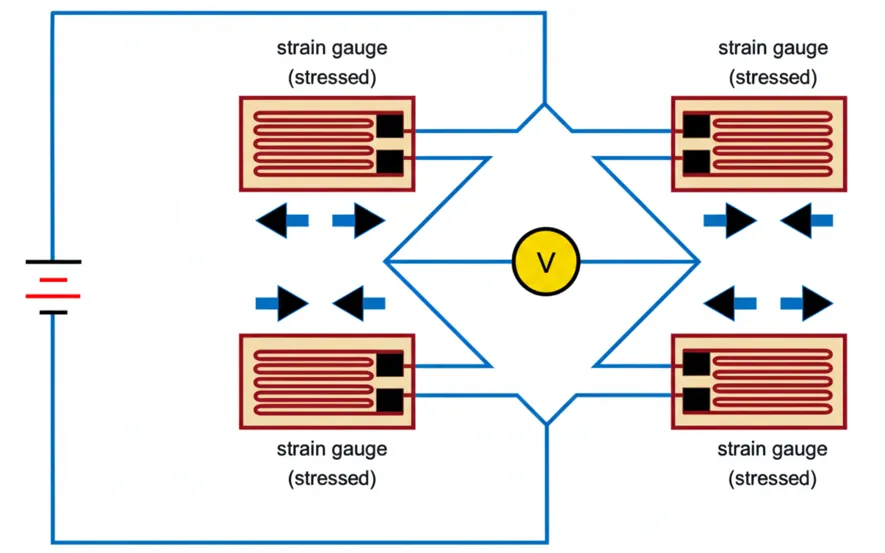

Strain Gauge Load Cell Design
A common design uses four strain gauges arranged in a Wheatstone bridge on a cantilever beam. When a load is applied to the free end of the beam, two gauges experience tension while the other two undergo compression. The resulting deflection alters the resistance of the gauges, creating a differential signal that is converted into a precise electrical output. This design ensures excellent sensitivity, accuracy, and temperature compensation.
Applications of Strain Gauge Load Cells
- Platform and bench scales for industrial weighing
- Hopper, tank, and silo load monitoring
- Crane and hoist overload protection
- Robotics and automation systems for force measurement
- Material testing machines (tensile, compression, fatigue)
- Batching and mixing systems in process industries
Hydraulic Load Cell
Hydraulic load cells measure force through fluid pressure rather than electrical resistance. The principle is simple: when a load is applied to a piston, it compresses a liquid-filled diaphragm. The resulting pressure increase inside the liquid chamber is directly proportional to the applied load. This pressure is commonly measured using a bourdon tube pressure gauge or a similar device, making hydraulic load cells highly reliable in heavy-duty applications.
Working Principle of Hydraulic Load Cell
When force or weight is applied on the load platform, the piston presses against the elastic diaphragm. The diaphragm, filled with oil or another incompressible liquid, transmits the pressure change uniformly. The greater the applied load, the higher the liquid pressure inside the chamber. This pressure is indicated on a connected pressure gauge, which can be calibrated to show force or weight readings directly.

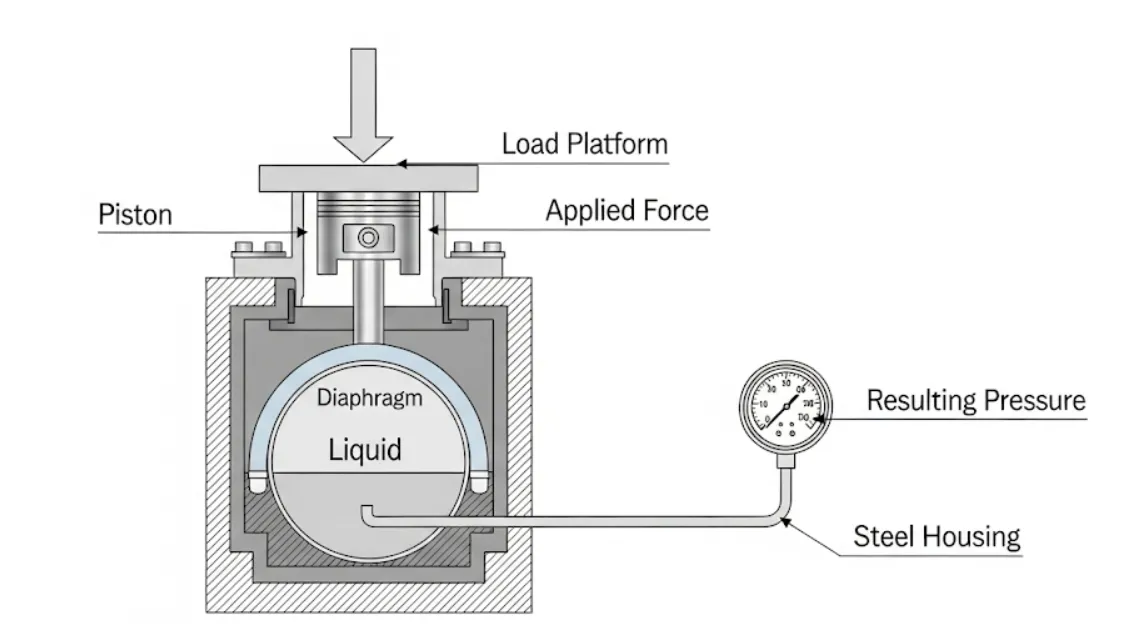

Design of Hydraulic Load Cell
A hydraulic load cell typically consists of the following components:
- Elastic, liquid-filled diaphragm: Transfers applied load into fluid pressure.
- Piston with load platform: Ensures accurate pressure transmission to the diaphragm.
- Pressure gauge or transducer: Converts liquid pressure into readable values.
- Steel housing: Provides mechanical strength and protection.
Benefits of Hydraulic Load Cell
- No electrical components, making them safe in explosive or hazardous environments.
- Do not require external power supply for basic operation.
- Durable and suitable for harsh industrial conditions.
- Provide stable readings with minimal drift.
Applications of Hydraulic Load Cells
- Weighing systems in hazardous or explosive environments
- Industrial heavy-duty scales
- Bridge, dock, and structural load monitoring
- Mining and material handling equipment
- Force measurement in outdoor and remote locations
Pneumatic Load Cell
Pneumatic load cells operate on the same basic principle as hydraulic load cells, but instead of liquid, they use compressed air or gas to measure force. When a load is applied to the diaphragm, pressurized air is introduced on the opposite side to balance the applied force. The amount of air pressure required to maintain this balance is directly proportional to the load. This pressure is then measured using a pressure gauge or transducer to determine the applied force.
Working Principle of Pneumatic Load Cell
The measured force is applied to one side of an elastic diaphragm, while air pressure is applied to the other side through a nozzle and regulator. As the load increases, more air pressure is required to keep the diaphragm in balance. The resulting pressure change is directly related to the applied load and can be accurately displayed on a calibrated pressure gauge or converted into an electrical output.

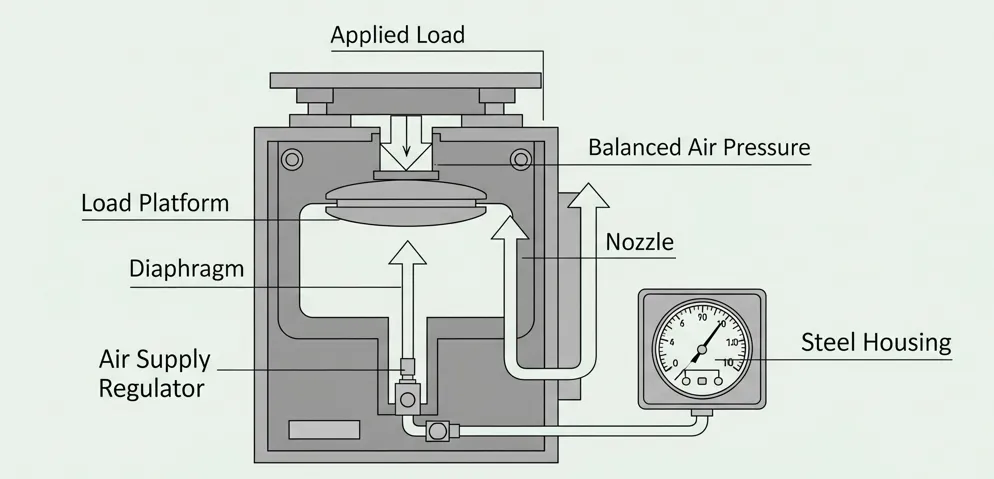

Design of Pneumatic Load Cell
A typical pneumatic load cell includes the following components:
- Elastic diaphragm with platform: Transfers the applied load to the pressurized air chamber.
- Air supply regulator: Controls the flow of compressed air to balance the applied force.
- Nozzle: Adjusts and maintains the balancing pressure across the diaphragm.
- Pressure gauge: Measures and displays the air pressure proportional to the applied load.
- Steel housing: Provides structural strength and environmental protection.
Benefits of Pneumatic Load Cell
- Safe for use in explosive or hazardous environments due to the absence of electrical components.
- Insensitive to temperature fluctuations and environmental changes.
- No risk of contamination from fluid leaks, unlike hydraulic load cells.
- Reliable operation with minimal maintenance requirements.
Applications of Pneumatic Load Cells
- Weighing systems in hazardous or flammable areas
- Food, pharmaceutical, and chemical industries requiring contamination-free operation
- Industrial process control systems
- Tank, hopper, and bin weighing
- Laboratories and cleanroom environments
Basic Circuit of Load Cells
When a force is applied to a load cell, the strain gauges attached to the spring or elastic material deform slightly. This deformation causes tiny changes in electrical resistance, which can be measured as small voltage variations. Because these changes are very small, a Wheatstone bridge circuit is used to accurately detect and amplify them.
What is a Wheatstone Bridge?
A Wheatstone bridge is an electrical circuit designed to measure very small changes in resistance. It consists of four resistive arms (R1, R2, R3, and R4) arranged in a diamond shape, with a voltage applied across the bridge. When all resistances are equal, the output voltage is zero. Any change in resistance unbalances the bridge and produces a voltage proportional to the applied force.
How Wheatstone Bridge Helps in Load Cells
In strain-gauge load cells, the four strain gauges act as the resistive arms of the Wheatstone bridge. When a load is applied, two gauges experience tension and two experience compression, causing small resistance changes (+ΔR1, −ΔR2, +ΔR3, −ΔR4). This unbalances the bridge and generates a differential voltage output. After amplification, this voltage can be accurately converted into a measurement of force or weight.
Benefits of Using Wheatstone Bridge in Load Cells
- Highly sensitive to small changes in force.
- Measures both compression and tension accurately.
- Compensates for temperature variations affecting all gauges equally.
- Standard circuit used in most electrical load cells for reliability and precision.
