Schneider Machine SCADA Expert – Smart Industrial Monitoring & Control
Published on Sep 15, 2025 | Category: introductionShare this Page:
EcoStruxure Machine SCADA Expert is a versatile and powerful software platform that enhances machine monitoring and production-line supervision. It is the next-generation solution that replaces the earlier Vijeo XL software, offering expanded capabilities, better performance, and simplified engineering. Designed for industries that demand rapid deployment and dependable operation, it supports HMI, SCADA, OEE, and dashboard applications for everything from basic supervision to complete line management. With its comprehensive features, the system delivers real-time visibility, improves productivity, and provides actionable insights directly at the machine edge.
Develop rich operator interfaces, supervisory systems, and performance dashboards that run on Windows or on embedded targets. The environment streamlines engineering through a centralized project tags database, enabling consistent data handling, simplified configuration, and faster project reuse. Flexible communication drivers make it straightforward to integrate PLCs, I/O modules, drives and other industrial assets so your screens, alarms, and historical logs always reflect the current plant state.
Built-in capabilities include alarm and event management, trending and historical data capture, recipe and parameter control, and a full database connectivity layer for exchanging production and quality records. Granular user authentication and role-based access help you secure operator interactions while preserving traceability and compliance.
When combined with validated Magelis Industrial PCs and GTU Open Box hardware, EcoStruxure Machine SCADA Expert becomes a time-saving integrated solution: the tested bundle reduces validation work for hardware, software and the operating system so engineering teams can accelerate commissioning and reduce total project risk.
Whether you are implementing a compact supervisory system, optimizing overall equipment effectiveness, or extending analytics to the edge, EcoStruxure Machine SCADA Expert offers a cost-conscious, scalable path to smarter automation — bridging operator ergonomics, data-driven decision making, and secure connectivity across your plant floor.
What is EcoStruxure Machine SCADA Expert?
EcoStruxure Machine SCADA Expert is Schneider Electric’s software platform for creating HMI, SCADA, OEE, and dashboard applications. It is designed for machine-level control, line management, and lite supervision, providing real-time monitoring, data visualization, alarms, trends, recipes, and secure operator interfaces. The solution helps manufacturers improve productivity, streamline operations, and connect industrial machines with edge and enterprise systems.
Key Features of EcoStruxure Machine SCADA Expert
- Advanced scripting, animations, graphics, and design tools
- Built-in recipes, alarms, trends, and tags database
- Multi-touch support and multi-language interface
- FDA CFR 21 Part 11 compliance with traceability and e-signatures
- Scalable architecture for machines to full SCADA systems
- Integration with Harmony iPC for smooth plant supervision
- Over 250 native drivers for PLCs, controllers, and devices
- Native OPC support (UA, DA, XML, .NET) for interoperability
- Mobile Access via web, tablet, or smartphone (HTML5 based)
- Remote monitoring, alarm notifications, and reporting (PDF, XML, HTML)
- Built-in OEE dashboard and performance monitoring tools
- Database integration with SQL and third-party historians
- Redundancy options for system reliability and data protection
- Modernized editor with custom themes, shortcuts, and usability upgrades
- Supports MQTT SparkPlug B for IIoT and Industry 4.0 applications

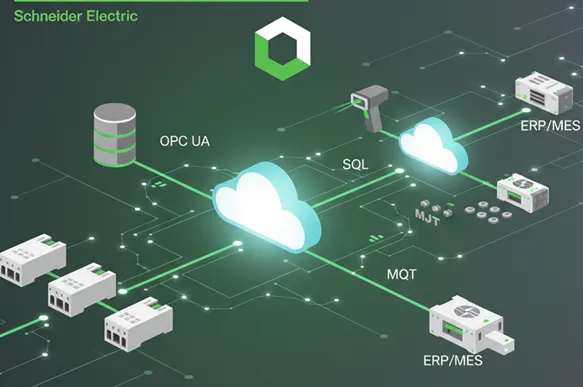

EcoStruxure Machine SCADA Expert for IIoT and Industry 4.0
EcoStruxure Machine SCADA Expert is built with Industry 4.0 in mind, offering native support for modern IIoT protocols like MQTT SparkPlug B. This ensures seamless data exchange between machines, edge devices, and cloud platforms. With a rich standardized data model and extensive driver library, it bridges the gap between operational technology (OT) and information technology (IT), enabling smarter, connected factories.

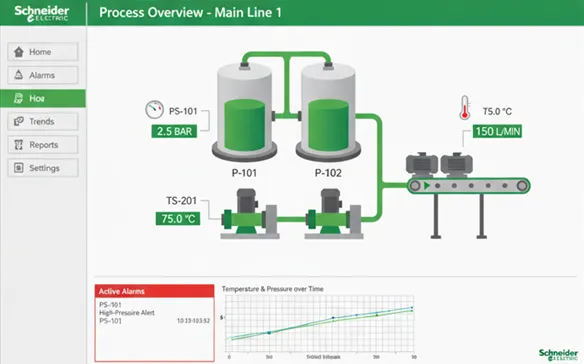

Real-Time Monitoring and Data Management
The platform provides complete visibility into operations with real-time dashboards, alarms, and event management. Production data can be logged into local or remote SQL databases, while trends and reports give actionable insights for operators and managers. With built-in redundancy and database integration, EcoStruxure Machine SCADA Expert ensures reliable data flow from the plant floor to higher-level MES and ERP systems.
EcoStruxure Machine SCADA Expert Mobile and Web Access
Access your applications anytime, anywhere through EcoStruxure Machine SCADA Expert Mobile Access. Operators can securely monitor machines, acknowledge alarms, and follow trends directly from a smartphone, tablet, or standard web browser. The HTML5-based interface ensures compatibility across devices without installing additional software. This remote access capability improves flexibility, responsiveness, and decision-making for modern industrial operations.
SQL Database Integration in EcoStruxure Machine SCADA Expert
EcoStruxure Machine SCADA Expert includes built-in tools for SQL database connectivity, allowing seamless integration between the shop floor and enterprise systems. Operators can log production data, store quality records, and exchange information with MES or ERP systems in real time.
- Direct integration with Microsoft SQL Server and other relational databases
- Automatic data logging for production, quality, and maintenance records
- Store alarms, events, and historical trends in secure databases
- Generate advanced reports (PDF, XML, HTML) using stored SQL data
- Support for redundancy to ensure no data loss in critical applications
- Link dashboards and OEE calculations directly with SQL queries
With its SQL database features, EcoStruxure Machine SCADA Expert helps transform raw machine data into structured, traceable information, supporting smarter analytics, compliance, and improved decision-making.

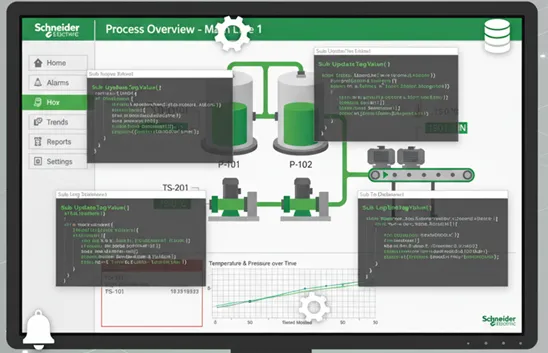

VBScript Support in EcoStruxure Machine SCADA Expert
EcoStruxure Machine SCADA Expert provides full support for VBScript, giving engineers the flexibility to extend functionality beyond standard configuration tools. With scripting, users can automate repetitive tasks, customize application behavior, and integrate third-party systems seamlessly into their SCADA projects.
- Automate calculations and data processing in real time
- Customize alarms, reports, and event handling logic
- Interact with external applications, APIs, and databases
- Create dynamic screen elements and custom animations
- Implement advanced control strategies not available in standard blocks
By leveraging VBScript, EcoStruxure Machine SCADA Expert allows developers to create smarter, more responsive, and fully tailored SCADA solutions while reducing engineering effort and improving overall flexibility.
