Top 100 Siemens PLC Interview Questions and Answers

Published on July 2, 2024 | Category: Question
Share this article:

This page provides a comprehensive collection of the Top 100 Siemens PLC interview questions and answers, meticulously compiled to help candidates prepare for real-world industrial automation job interviews. Whether you're a fresher entering the automation field or an experienced professional looking to refresh your Siemens PLC knowledge, this guide covers a wide range of topics relevant to today's industry demands.
You’ll find in-depth questions on Siemens S7-1200, S7-1500, S7-300, and S7-400 PLC systems, along with detailed explanations related to TIA Portal, Step 7, and various programming languages including LAD (Ladder Logic), FBD, STL, and SCL. The questions are categorized by:

Whether you're preparing for a position as a PLC Programmer, Automation Engineer, Control System Engineer, or Maintenance Technician, this guide is designed to help you answer with confidence and clarity in your Siemens-focused interviews.

1. What is Siemens PLC?

A Siemens PLC (Programmable Logic Controller) is an industrial digital computer used to control manufacturing processes, such as machines on factory assembly lines or lighting fixtures. Siemens PLCs are known for their reliability, modularity, and powerful integration with HMI and SCADA systems.

2. Types of Siemens PLCs

Siemens offers various PLC families based on application size:

3. What is TIA Portal?

TIA Portal (Totally Integrated Automation Portal) is Siemens' all-in-one engineering software for programming PLCs, HMIs, and drives. It integrates configuration, diagnostics, and programming into one platform, making development faster and more efficient.

4. What is STEP 7?

STEP 7 is Siemens’ classic PLC programming software used mainly for S7-300 and S7-400 series. It supports LAD, FBD, STL programming languages and hardware configuration, diagnostics, and online testing.

5. What is Siemens WinCC Flexible?

WinCC Flexible is Siemens’ older HMI design software used for configuring operator panels. It was used before TIA Portal introduced unified HMI design under its environment.

6. Which software is used for programming Siemens PLCs?

- TIA Portal: For programming S7-1200, S7-1500, and latest versions of S7-300/400
- STEP 7 (Classic): For programming S7-300 and S7-400 (legacy systems)

7. Which software is used for designing Siemens HMI?

- WinCC in TIA Portal: Modern and integrated HMI development
- WinCC Flexible: Used for older operator panels

8. Types of Siemens HMIs

- Basic Panels (for simple applications)
- Comfort Panels (high-performance and high-resolution displays)
- Mobile Panels (for handheld/mobile use)
- WinCC Runtime Advanced/Professional (PC-based HMI/SCADA systems)

9. What is Siemens SCADA?

Siemens SCADA is a supervisory control and data acquisition solution that enables centralized monitoring and control of industrial processes. Siemens offers SCADA under the WinCC platform.

10. Which software is used for Siemens SCADA?

- WinCC SCADA: Used for monitoring, data logging, alarms, trends
- WinCC Professional: Advanced PC-based SCADA integrated in TIA Portal

11. Why is TIA Portal preferred over STEP 7?

TIA Portal integrates PLC, HMI, and drive programming into a single environment, reducing engineering time. It also offers better diagnostics, modern UI, and support for S7-1200/1500, making it more efficient than STEP 7.

12. Difference between S7-300 and S7-1500 Series PLC

- S7-1500: Faster CPU, integrated display, advanced diagnostics, supports only TIA Portal
- S7-300: Older platform, widely used but slower and lacks modern features

13. Types of Protocols in Siemens

- PROFINET (Ethernet-based) - PROFIBUS (Serial-based) - MODBUS TCP/RTU - OPC UA/DA - Ethernet/IP - MPI (Multi Point Interface)

14. What is S7 Protocol?

S7 Protocol is Siemens' proprietary communication protocol used for programming and communication with Siemens PLCs over Ethernet or MPI/Profibus.

15. What is PLCSIM?

PLCSIM is Siemens’ PLC simulation tool that allows you to test and debug PLC logic without physical hardware.

16. What is an Organization Block (OB)?

OBs are special blocks in Siemens PLCs that control the execution of the user program. For example, OB1 is the main cyclic block, OB100 for startup, OB121 for error handling, etc.

17. When do we use Organization Blocks?

OBs are used to manage specific tasks or reactions in the PLC, such as startup (OB100), errors (OB121), communication (OB82), and regular execution (OB1).

18. What is the Main Organization Block?

OB1 is the main cyclic block in Siemens PLCs. It executes repeatedly and forms the main loop of the PLC program.

19. Supported Protocols of Siemens PLC

Siemens PLCs support: PROFINET, PROFIBUS, Modbus TCP/RTU, OPC UA, Ethernet/IP, MQTT, and more depending on the CPU and communication modules used.

20. Can Siemens PLC communicate with other SCADA and HMI systems?

Yes, Siemens PLCs can communicate with third-party SCADA and HMI using open protocols like Modbus, OPC UA/DA, or Ethernet/IP.

21. How does Siemens PLC work?

Siemens PLCs scan input signals, execute the program logic, and update output signals cyclically. The scan cycle includes reading inputs, program execution (OB1), and writing outputs.

22. Components of Siemens PLC

- CPU (central processing unit)
- Power supply module
- Input/Output modules (Digital/Analog)
- Communication modules
- Programming device/software

23. What is a relay used in Siemens PLC?

Relays in PLC outputs are used to switch external devices like motors, lights, or solenoids based on the PLC program. They can be electromechanical or solid-state.

24. Types of Programming Languages Supported in Siemens PLC

- LAD (Ladder Logic)
- FBD (Function Block Diagram)
- STL (Statement List)
- SCL (Structured Control Language – similar to Pascal)

25. Does Siemens support IEC standards?

Yes, Siemens PLCs support IEC 61131-3 standards which define the programming languages and structures for PLC programming.

26. What are Siemens Timers?

Timers are logic instructions used to delay operations. Siemens provides: - On-delay timer (TON) - Off-delay timer (TOF) - Pulse timer (TP)

27. Types of Non-IEC Timers in Siemens

Non-IEC timers include S5 timers (S_PULSE, S_ODT, S_OFFDT) mostly used in older systems like S7-300/400.

28. Why does Siemens have Non-IEC Timers?

Siemens retained non-IEC timers for backward compatibility with older systems like S5 and early S7 PLCs. They are still supported for legacy migration.

29. Difference Between IEC Standard Functions and Siemens Standard Instructions

- IEC functions (TON, TOF, TP) are standard across PLC vendors.
- Siemens-specific (S5) timers are proprietary and limited to Siemens systems.
IEC standard promotes portability; Siemens standard ensures compatibility with older hardware.

30. What is a Function Block in Siemens PLC?

A Function Block (FB) is a reusable code block that can store internal memory using an associated data block (DB). It’s used to encapsulate complex logic (e.g., PID control) with multiple inputs, outputs, and memory.

31. What is SCL programming language?

SCL (Structured Control Language) is a high-level textual programming language used in Siemens PLCs. It is similar to Pascal and is ideal for complex algorithms, loops, and mathematical operations.

32. Is SCL the same as Structured Text?

Yes, SCL is Siemens' implementation of Structured Text (ST), which is defined by the IEC 61131-3 standard. SCL and ST are often used interchangeably in Siemens TIA Portal.

33. What is the high-level programming language in Siemens PLC?

The high-level language used in Siemens PLC is SCL (Structured Control Language). It is used for tasks that require advanced control logic, loops, and calculations.

34. What is SCL used for in Siemens PLC?

SCL is used to implement complex logic, calculations, string operations, loops, and functions that are difficult to achieve in ladder logic (LAD) or function block diagram (FBD).

35. What is MPI?

MPI (Multi-Point Interface) is Siemens’ proprietary serial communication protocol used for programming and communication between PLCs, HMIs, and programming devices in older systems like S7-300.

36. What is PROFINET?

PROFINET is an Ethernet-based industrial communication protocol used in Siemens automation. It provides high-speed, real-time communication between PLCs, I/O modules, HMIs, and SCADA.

37. What is PROFIBUS?

PROFIBUS is a serial communication protocol used to connect PLCs, sensors, and actuators. It is robust and commonly used in legacy Siemens PLCs like S7-300 and S7-400.

38. What is TCP/IP?

TCP/IP (Transmission Control Protocol/Internet Protocol) is a standard network protocol suite used for industrial Ethernet communication. Siemens PLCs use TCP/IP for communication with SCADA, PCs, and servers.

39. Steps to make a Siemens PLC program

1. Open TIA Portal
2. Create a new project
3. Add and configure the PLC hardware
4. Assign device addresses and modules
5. Write the PLC program using LAD, FBD, or SCL
6. Download the program to the PLC
7. Monitor and test the program

40. Steps to start designing an HMI

1. Open TIA Portal
2. Add an HMI device (e.g., Comfort Panel)
3. Configure screen resolution and layout
4. Add buttons, indicators, and input/output fields
5. Link tags to PLC variables
6. Create alarms and data logging if needed
7. Download the configuration to the HMI

41. What is data logging in Siemens SCADA?

Data logging is the process of recording process values (like temperature, speed, pressure) over time for monitoring and analysis. Siemens SCADA (WinCC) provides features to log and trend such data.

42. Can we communicate Siemens PLC with SCADA?

Yes, Siemens PLCs can communicate with SCADA systems (such as WinCC, iFix, or Wonderware) using protocols like OPC, PROFINET, or MODBUS TCP/IP.

43. How does communication work in Siemens PLC?

Communication is established using hardware ports (Ethernet, MPI, PROFIBUS) and configured in software using network settings, device addresses, and protocols like PROFINET or TCP/IP.

44. What is TIA Administration?

TIA Administration refers to managing TIA Portal projects, users, libraries, and device configurations. It includes backing up, restoring, version controlling, and maintaining engineering projects.

45. What is Basic HMI?

Basic HMI panels are low-cost operator panels from Siemens used for simple visualization tasks. They support limited functions and smaller tag counts compared to Comfort panels.

46. What is Comfort Panel HMI?

Comfort Panels are advanced Siemens HMI panels with high-resolution displays, better performance, and support for complex visualizations, scripts, and data logging.

47. What is Windows RT (Runtime)?

Windows Runtime (RT) is a PC-based runtime system that runs WinCC or HMI visualizations without dedicated HMI hardware. It’s used for testing or deploying HMIs on industrial PCs.

48. How to configure network in Siemens PLC?

In TIA Portal: - Open “Device Configuration”
- Click on Ethernet port
- Assign IP address and subnet
- Link PLC to a PROFINET or TCP/IP network
- Compile and download to the PLC

49. How to set address of PLC?

In the PLC device configuration, select the Ethernet port and assign the desired IP address, subnet mask, and gateway (if needed).

50. How to set address of HMI?

In the HMI device configuration, set the HMI’s IP address and ensure it’s in the same subnet as the PLC. Assign communication channels accordingly.

51. What is network configuration?

Network configuration involves setting up IP addresses, subnet masks, device names, and communication paths between devices like PLCs, HMIs, and PCs to enable data exchange.

52. What is Siemens Mobile Panel HMI?

Siemens Mobile Panels are portable HMI devices that allow operators to move freely on the shop floor while interacting with machines. They provide safe control through emergency stops and enable switches.

53. What is a PC Station?

A PC Station is an engineering or runtime PC configured to communicate with Siemens devices. It can run WinCC SCADA, OPC server, or act as an HMI.

54. How to configure PC Station in Siemens?

Use Siemens “Station Configuration Editor” or “HW Config” to define modules like CP cards, OPC servers, and assign network interfaces. Link with TIA Portal or STEP 7 projects.

55. Use of Siemens PC Station

- Running SCADA (WinCC Runtime)
- Acting as OPC server
- Engineering and simulation
- Data acquisition and storage

56. Types of user applications in Siemens environment

- HMI Runtime Applications
- SCADA Operator Systems
- Engineering Stations (for programming/configuration)
- OPC Server/Client Applications

57. What is an OPC Server?

An OPC server acts as a data intermediary between automation systems (like PLCs) and clients (like SCADA or HMIs), using the OPC protocol to exchange real-time data.

58. Application of OPC in Siemens PLC

OPC enables data access, alarm monitoring, and historical logging between Siemens PLCs and third-party software like SCADA, MES, or reporting tools.

59. What is Siemens Runtime?

Siemens Runtime (RT) refers to the execution environment for HMI or SCADA applications on an HMI panel or PC station after the project has been downloaded.

60. What is Siemens HMI RT?

HMI Runtime (RT) is the operating mode of a Siemens HMI device or panel where the downloaded project runs and interacts with the PLC in real-time.

61. Difference between STEP 7 and TIA Portal

- STEP 7: Classic software for S7-300/400 programming
- TIA Portal: Unified engineering platform for PLC, HMI, drives with modern interface and support for S7-1200/1500

62. What is PG/PC Interface?

The PG/PC Interface is the communication setting on a programming device (PG or PC) that defines how it connects to the PLC (e.g., via Ethernet, MPI, PROFIBUS).

63. What is PN/IO?

PN/IO (PROFINET I/O) refers to the decentralized I/O devices connected over PROFINET network. PLC acts as an IO Controller, and devices are IO Devices.

64. Where is PG/PC Interface located?

The PG/PC Interface is found in the Windows Control Panel under: Control Panel → Siemens → Set PG/PC Interface. It allows you to select the proper communication adapter.

65. What is hardware configuration?

Hardware configuration involves defining the PLC model, power supply, communication modules, and I/O modules in the software so it matches the real-world setup.

66. How to configure rack and slot in Siemens PLC?

In TIA Portal or STEP 7, open device configuration, select rack layout, and place modules in appropriate slots according to the real hardware. Each CPU or module has predefined slot numbers.

67. What is a communication module?

A communication module (e.g., CP343, CP1543) is used in Siemens PLCs to enable communication over networks like Ethernet, PROFIBUS, or MODBUS.

68. Why is a communication module used?

It expands the communication capabilities of a PLC, allowing it to connect with other PLCs, SCADA systems, or industrial networks for data exchange.

69. Basic structure of Siemens PLC

- Power Supply
- CPU
- Communication Module
- I/O Modules (DI/DO/AI/AO)
- Memory (load and work memory)
- Programming port (MPI/PROFINET)

70. Basics of making a PLC program

- Define the task logic
- Select the right PLC model
- Create a new project in TIA Portal
- Configure hardware
- Write program in LAD/FBD/SCL
- Download to PLC and test

71. Types of instructions in Siemens Ladder Programming

- Bit Logic (AND, OR, NOT)
- Timer and Counter Instructions
- Comparison Instructions
- Arithmetic Operations
- Move and Conversion Instructions
- Program Control (Jump, Call, Return)

72. Types of counters in Siemens PLC

Siemens PLC supports the following types of counters:

73. Types of IEC instructions available in PLC programming

IEC 61131-3 standard defines:

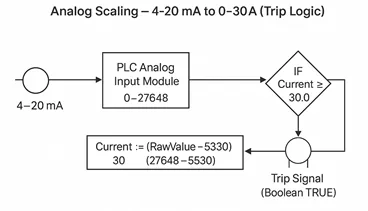

74. How to connect an analog sensor in Siemens PLC

Connect the analog sensor's output (e.g., 4-20 mA or 0-10V) to an analog input module (AI). Ensure the wiring matches the module configuration and scaling is done in software.

75. What is the address of an analog signal in Siemens PLC?

Analog input addresses typically start with IW (for 16-bit input) or PIW for peripheral input. Example: IW64 or PIW288.

76. What is the address of a digital input signal?

Digital input addresses start with I. For example, I0.0 is input byte 0, bit 0.

77. Where to connect digital signals in Siemens PLC?

Digital signals (push buttons, sensors) are connected to digital input (DI) modules. Outputs (like lights, relays) are connected to digital output (DO) modules.

78. What is a modular Siemens PLC?

A modular PLC consists of separate modules like CPU, I/O, and power supply that can be assembled on a rack. It allows scalability and flexibility.

79. Name of Siemens modular PLCs

- S7-300
- S7-400
- S7-1500 (modular with integrated display)

80. Name of compact Siemens PLCs

- S7-200 (legacy)
- S7-1200 (current generation compact PLC)

81. What is a compact Siemens PLC?

A compact PLC has integrated power supply, CPU, and I/O in a single unit. It's used in small to medium automation projects. Example: S7-1200.

82. What is Ethernet communication?

Ethernet communication in Siemens PLC is used to connect devices like HMIs, SCADA, and programming PCs using PROFINET or TCP/IP protocols over LAN.

83. Can we use an IP address for Siemens PLC?

Yes, Siemens PLCs (like S7-1200, S7-1500) can be assigned a static IP address for Ethernet communication and integration with HMIs, SCADA, or remote devices.

84. How to address Siemens PLC?

In TIA Portal, select the PLC in device configuration, go to properties → Ethernet address → assign IP address (e.g., 192.168.0.1).

85. Siemens data types

- BOOL (1-bit logic)
- BYTE (8-bit unsigned)
- WORD, DWORD (16/32-bit)
- INT, DINT (signed integers)
- REAL (floating point)
- STRING, CHAR
- ARRAY, STRUCT, TIME, DATE

86. What is BOOL data type in Siemens PLC?

BOOL represents a single-bit value that can be either TRUE or FALSE. Used for digital inputs/outputs and logical conditions.

87. Which instruction is used for analog scaling?

The NORM_X and SCALE_X instructions are used to normalize and scale analog values in Siemens PLCs. You can also use simple math logic in SCL or FBD.

88. Analog scaling example: 4-20 mA to 0–30A trip logic

Input signal: 4–20 mA mapped to 0–27648 (raw value)
Scaling logic (SCL):
Current := (RawValue - 5530) * 30.0 / (27648 - 5530);
IF Current >= 30.0 THEN Trip := TRUE; END_IF;

img/siemens-plc-interview/siemens-plc-analog-scaling.webp

89. What is an array?

An array is a data structure that holds multiple values of the same data type. Example: Array[1..10] of INT can store 10 integer values.

90. Why use an array data type?

Arrays help manage repeated data types, such as sensor values, alarms, or setpoints. They simplify looping and data processing.

91. How to generate a data report in Siemens SCADA?

Use WinCC reporting features to log tags, alarms, and process data to CSV or PDF. Configure the data log, reporting format, and time/event-based triggers.

92. What is the use of instructions in ladder logic?

Instructions like contacts, coils, timers, counters, and comparators form the basic building blocks of ladder logic. They represent the logic flow similar to relay diagrams.

93. Define FBD (Function Block Diagram)

FBD is a graphical programming language where logic is built using interconnected blocks. It’s easier for process engineers and supports structured programming.

94. What is a CFC in Siemens?

CFC (Continuous Function Chart) is a Siemens programming language used in PCS 7 systems for high-level process automation. It allows free positioning and interconnection of blocks.

95. Where do we use CFC?

CFC is used in process automation industries (chemical, oil & gas) in Siemens PCS 7 systems for complex, continuous control tasks.

96. What happens if a module stops working while PLC is running?

The PLC may enter a diagnostic state, OB82 or OB86 (module failure) gets triggered, and relevant I/O data becomes invalid. Appropriate error handling should be programmed.

97. What happens if the PLC enters error mode?

In error mode, cyclic execution stops, and the CPU enters STOP mode. OB121 or OB122 may be triggered. Diagnostics need to be checked using TIA Portal.

98. How to avoid errors in PLC programming?

- Use proper OBs for error handling
- Validate inputs before use
- Use watchdogs, interlocks, and diagnostics
- Test programs in PLCSIM before download

99. What happens if the PLC suddenly stops?

All outputs are turned off for safety. The CPU status LED indicates fault. Restart is possible after clearing faults or power cycle.

100. Can we edit the program during runtime?

Yes, Siemens PLC allows online editing in TIA Portal. Minor changes can be made while the PLC is in RUN mode without stopping the machine.

101. How to download and upload a program to the controller?

- Connect PC to PLC via Ethernet or USB
- Open TIA Portal
- Select the device and go to Online → Download
- For upload: Go to Online → Upload from device into the project

102. What is the download procedure in Siemens TIA Portal?

1. Compile the project
2. Connect to PLC via proper interface
3. Click “Download to device”
4. Select the CPU
5. Start download and run the program after transfer

103. What is the upload procedure in Siemens PLC?

The upload procedure allows you to transfer the existing program and hardware configuration from the PLC to your PC. This is useful when the source project file is lost or when maintaining existing systems.

Steps to upload:

104. What is the Download option in Siemens PLC?

The Download option is used to transfer the program, hardware configuration, and parameters from your engineering PC to the PLC. It is typically used during commissioning or after modifying the project.

Steps to download:

105. What is the Upload option in Siemens PLC?

The Upload option retrieves the current program and hardware configuration stored in the PLC. This is useful for backup, maintenance, or when the original project file is unavailable.

106. Types of Programming Blocks in Siemens PLC

Siemens PLC supports the following block types:

107. What is a Data Block (DB) in Siemens PLC?

A Data Block is a memory area used to store user-defined variables or data. There are two types:

DBs can store INT, BOOL, REAL, ARRAY, STRUCT, and other complex data types.

108. What is a Function Block (FB) in Siemens PLC?

A Function Block is a reusable section of code that includes both logic and internal memory. Each FB requires an associated Instance Data Block (IDB) to store its status and values between cycles.

Use cases: Motor control, PID control, valve control, reusable sequences

Recommended for You
