Siemens string data types and string function

Published on Jul20, 2021 | Category: data type

Share this article:

string data type store character . range of character for string data types is 0 to 255. in brackets you can declare range of character.siemens Complex data types . string is one dimensional array with a maximum 254 character.

Format of the Data Type STRING

string[7]='siemens' string length is 7, this store only 7 character without space.
string[8]='plc blog' in this example total 7 character and one space so total character length is 8.

string data type declaration

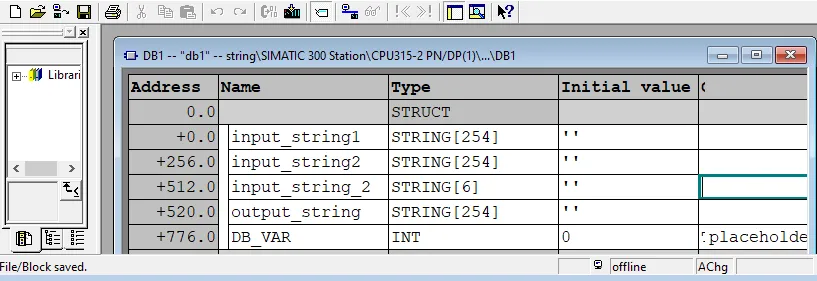

make a data block (DB) declare string data types with length and save the data block.

in this data block input_string1, input_string2 and output_string have 254 character length. input_string_lenth have 6 character length.

string function block

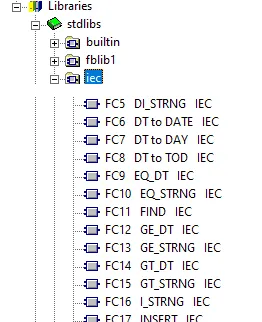

Following iec string blocks available in siemens, for inserting theses blocks go to projectr > libraries > IEC than select your string block

FC21 LEN
FC20 LEFT
FC32 RIGHT
FC26 MID
FC2 CONCAT
FC17 INSERT
FC4 DELETE
FC31 REPLACE
FC11 FIND

FC10 EQ_STRNG
FC13 GE_STRNG
FC15 GT_STRNG
FC19 LE_STRNG
FC24 LT_STRNG
FC29 NE_STRNG

FC16 I_STRNG
FC5 DI_STRNG
FC30 R_STRNG
FC38 STRNG_I
FC37 STRNG_DI
FC39 STRNG_R

some of the example of string function blocks

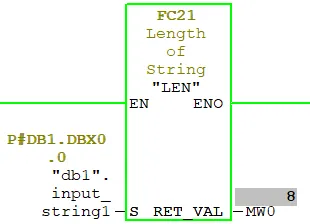

siemens LEN function block FC 21 : LEN

A STRING variable contains two lengths, the maximum length which is given in square brackets when the variables are being defined, and the current length which is the number of currently valid characters. The current length must be smaller than or equal to the maximum length. The number of bytes occupied by a string is 2 greater than the maximum length. The function FC21 outputs the current length of a string as a return value. A blank string (' ') has the length zero. The maximum length is 254. The function does not report any errors.

input S is string data type
OUTPUT RET_VAL is INT data type

This function blocks have one input as string , output of this block is int type when. Output return length of input string. For example if your input string is 'plc' output is 3. if input of this block is 'plc blog' than output is 8 (7 character and 1 for space).

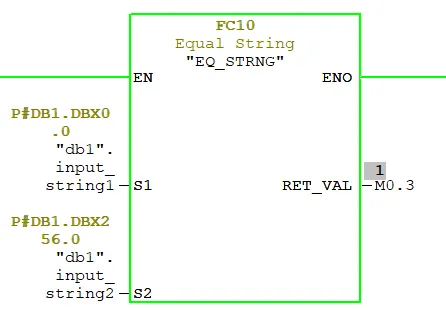

siemens equal string function block FC10 EQ_STRNG

FC10 blocks is string comparison block it compares two input string if both input sting is equal than it return 1 at the output (RET_VAL) otherwise 0.

input S1 and S2 are string data type
OUTPUT RET_VAL is bool data type

if the input of S1 is 'siemens' and input of S2 is 'Siemens' than output RET_VAL is 1 otherwise output is 0.

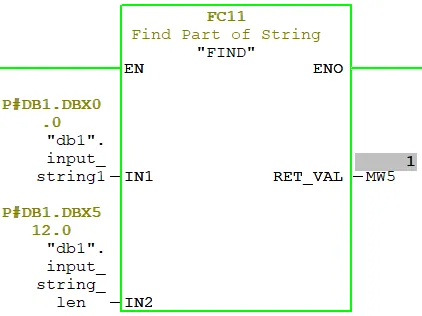

siemens find function block FC11 FIND

The function FC11 provides the position of the second string (IN2) within the first string (IN1). The search starts on the left; the first occurrence of the string is reported. If the second string is not found in the first, zero is returned. The function does not report any errors.

input IN1 string data type : STRING variable to be searched in
input IN2 string data type : STRING variable to be found
OUTPUT RET_VAL is INT data type : Position of the string found

if the input string of IN1 is 'plc blog' and input string of IN2 is 'plc' than output RET_VAL is 1 otherwise output is 0.
if the input string of IN1 is 'plc blog' and input string of IN2 is 'blog' than output RET_VAL is 5 otherwise output is 0.

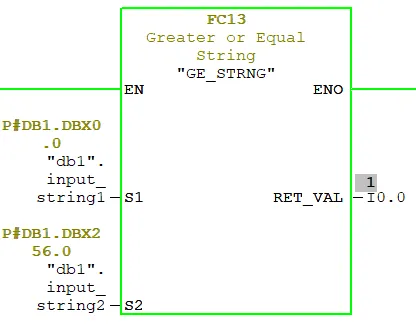

siemens greater than equal to FC13 GE_STRNG

FC13 is a string comparison blocks, if string value of S1 is greater than or equal to the string value of S2 than output RET_VAL is 1 otherwise 0.

input S1 and S2 are string data type
OUTPUT RET_VAL is bool data type

if the input of s1 is plc and input value of s2 is 'blog' than output is zero if the value of s1 is 'plc' and value of s2 is 'plc' than output is 1.
